Software Testing | Week 4 : Assignment 4



Week 4 : Assignment 4

Due date: 2022-08-24, 23:59 IST.

Assignment not submitted

1 point

Which of the following best describes a test driver?

 It is a special purpose implementation of a software module, used to develop or test a component that calls it.

 It is a software component that replaces another component that takes care of the control and/or the calling of a software component.

1 point

If method A uses a variable v shared with method B, where A writes to v and B reads from v, then, it is an example of which kind of coupling interface listed below?

 Parameter coupling.

 Interface coupling.

 External coupling.

 Shared data coupling.

1 point

To test sequencing constraints that occur as requirements specification, which of the following tests are used?

 Tests are inputs to sequencing constraints that violate the constraints.

 Tests are inputs to sequencing constraints that satisfy the constraints.

 Tests are sequences of method calls, as they occur in the specification.

 Tests are randomly generated sequencing constraints.

1 point

A simple path from the last definition to the first use of a coupling variable is called as . . . . . . . . ..

 A du-path.

 A coupling du-path.

1 point

State Yes or No: Are control flow graphs representing code the same as finite state machines that represent the same code?

 Yes

 No

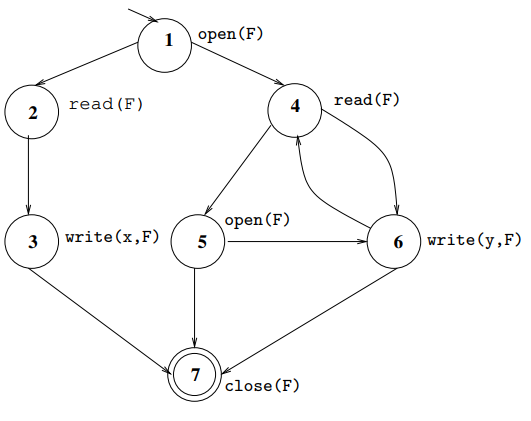

Consider the graph below that depicts the calls to file handler methods open(), close(),read() and write(). Any procedure/method that uses these methods has to satisfy the following sequencing constraints: (1) An open(f) must be executed before every write(t), (2) An open(f) must be executed before every close(), (3) A write(f) may not be executed after a close() unless there is an open(f) in between, (4) A write(t) should be executed before every close().



Answer the following questions with reference to the sequencing constraints and the graph a method that uses these constraints.

1 point

Which of the following is true with reference to the graph satisfying the sequencing constraints?

 All the sequencing constraints are satisfied.

 Constraints (1) and (2) are satisfied but (3) and (4) are not.

 Constraints (1), (2) and (3) are satisfied but (4) is not.

 All constraints are violated.

1 point

State true or false: The path (1,4,5,7) satisfies constraint (4).

 True.

 False.

1 point

State true or false: The path (1,2,3,7) satisfies all the constraints.

 True.

 False.

1 point

State yes or no: Does the path (1,4,6,7) violate any of the constraints?

 Yes.

 No.

1 point

State true or false: The path (1,4,6,4,6,7) satisfies all the constraints.

 Yes.

 No.

You may submit any number of times before the due date. The final submission will be considered for grading.

1. a

2. d

3. c

4. b

5. a

6. d

7. a

8. b

9. a

10. b

Not 100% correct
